Aluminum Gas Cylinder for Fire Extinguishers

Name: Aluminum Gas Cylinder For Fire Extinguishers | Shining Packaging
Brand: Shining Packaging
Availability: InStock

Standard

DOT, TPED, GB/T

Material

Aluminium alloy 6061-T6

Applications

residential, commercial, and vehicular fire protection systems

Valve & Thread

Specified & Installed Upon Request

Size

Custom Size is available with the TPED/DOT Certified Range

Finish

Unpainted & Brushed & Different Color Coated

Delivery Time

Usually 30-40 days Upon Quantity

Why Choose Our Aluminum Gas Cylinders?

At Shining Packaging, we specialize in crafting high-quality aluminum gas cylinders and fire extinguishers designed for superior performance in fire protection systems. Made from aluminum alloy 6061-T6, our cylinders are lightweight, corrosion-resistant, and built to meet stringent DOT and TPED standards. Whether for residential, commercial, or vehicular applications, our products ensure reliable fire safety with customizable options to meet your needs.

Advanced Material and Production

Our aluminum gas cylinders are constructed using premium aluminum alloy 6061-T6, analyzed with a spectrum analyzer to guarantee material stability and durability. This ensures our cylinders withstand harsh environments, making them ideal for fire extinguishers in diverse settings. With automated shaping machinery, we achieve seamless cylinder interfaces, enhancing safety and reliability for all fire protection applications.

Customizable Features and Finishes

We offer a range of customization options for our aluminum gas cylinders. Choose from unpainted, brushed, or color-coated finishes to match your aesthetic or functional requirements. Additionally, we provide custom sizes within our DOT/TPED certified range, along with specified valves and threads installed upon request. Share your specifications, and we will deliver tailored solutions with technical illustrations for approval.

Versatile Fire Protection Applications

Our fire extinguishers and aluminum gas cylinders cater to a wide range of fire safety needs:

Portable Extinguishers: Lightweight and easy to maneuver, perfect for residential and commercial emergencies.
Automotive Fire Suppression: Compact and durable for vehicles like cars and buses, ensuring reliable fire safety in confined spaces.
Industrial Fire Protection: Robust and corrosion-resistant, ideal for safeguarding industrial operations.
Marine Fire Safety: Resistant to saltwater corrosion, our cylinders are essential for fire safety systems on ships and vessels.

Premium Aluminum Gas Cylinders for Fire Safety

We pride ourselves on efficient production and delivery, with standard lead times of 30-40 days depending on order quantity. Our team at Shining Packaging is committed to providing exceptional support, ensuring your aluminum gas cylinders and fire extinguishers meet your exact specifications. Contact us today to discuss your fire protection needs and request a quote.

Aluminum Cylinders Size

DOT 3AL Aluminum Gas Cylinder

NO.	Outside Diameter		Service Pressure		Test pressure		Water Volume				Certified	Standard	Certification Body
	Outside Diameter		Service Pressure		Test pressure		Liters		lbs
	mm	in	bar	psi	bar	psi	min	max	min	max
1	50	1.97	250	3625	417	6042	0.26	0.46	0.57	1.01	DOT	DOT 3AL	DOT
2	60	2.36	166	2408	250	3626	0.35	0.65	0.77	1.43	DOT	UN ISO7866	DOT
3	61	2.40	207	3000	345	5000	0.4	0.7	0.88	1.54	DOT	DOT 3AL	DOT
4	73.8	2.91	160	2321	200	2901	0.62	0.62	1.36	1.36	DOT	DOT 39	DOT
5	73.8	2.91	120	1740	180	2611	0.2	1.5	0.44	3.31	DOT	UN ISO11118	DOT
6	73.8	2.91	150	2176	225	3263	0.2	1.5	0.44	3.31	DOT	UN ISO11118	DOT
7	81.5	3.21	153	2216	255	3694	0.6	1.3	1.32	2.87	DOT	DOT 3AL	DOT
8	81.5	3.21	124	1800	207	3000	0.63	1.17	1.39	2.58	DOT	DOT 3AL	DOT
9	90	3.54	207	3000	345	5000	0.92	1.68	2.03	3.70	DOT	DOT 3AL	DOT
10	111.3	4.38	139	2015	232	3359	1.2	2	2.65	4.41	DOT	DOT 3AL	DOT
11	111.3	4.38	124	1800	207	3000	0.98	1.82	2.16	4.01	DOT	DOT 3AL	DOT
12	111.3	4.38	139	2015	232	3359	2.52	4.68	5.56	10.32	DOT	DOT 3AL	DOT
13	133.4	5.25	153	2216	255	3694	3.9	7	8.60	15.43	DOT	DOT 3AL	DOT
14	133.4	5.25	124	1800	207	3000	2.38	4.42	5.25	9.74	DOT	DOT 3AL	DOT

TPED EN ISO7866 Aluminum Gas Cylinder

NO.	Outside Diameter		Service Pressure		Test pressure		Water Volume				Certified	Standard	Certification Body
	Outside Diameter		Service Pressure		Test pressure		Liters		lbs
	mm	in	bar	psi	bar	psi	min	max	min	max
1	60	2.36	166	2408	250	3626	0.4	0.67	0.88	1.48	TPED	EN ISO7866	TUV
2	60.5	2.38	200	2901	300	4351	0.35	0.7	0.77	1.54	TPED	EN ISO7866	TUV
3	80	3.15	32	464	48	696	0.6	1.5	1.32	3.31	TPED	EN ISO7866	TI
4	70	2.76	120	1740	180	2611	0.2	1.2	0.44	2.65	TPED	EN ISO11118	TUV
5	73.8	2.91	120	1740	180	2611	0.2	1.3	0.44	2.87	TPED	EN ISO11118	TUV
6	81.5	3.21	124	1798	186	2698	0.6	1.5	1.32	3.31	TPED	EN ISO7866	TUV
7	90	3.54	200	2901	300	4351	0.7	1.6	1.54	3.53	TPED	EN ISO7866	TUV
8	90	3.54	166	2408	250	3626	0.7	1.6	1.54	3.53	TPED	EN ISO7866	TUV
9	111	4.37	124	1798	186	2698	1.4	3.9	3.09	8.60	TPED	EN ISO7866	TUV
10	111	4.37	200	2901	300	4351	1.4	4	3.09	8.82	TPED	EN ISO7866	TUV
11	120	4.72	166	2408	250	3626	1.4	4.5	3.09	9.92	TPED	EN ISO7866	TUV
12	140	5.51	166	2408	250	3626	4	8	8.82	17.64	TPED	EN ISO7866	TUV
13	140	5.51	200	2901	300	4351	3	9	6.61	19.84	TPED	EN ISO7866	TUV
14	184	7.24	166	2408	250	3626	6	15	13.23	33.07	TPED	EN ISO7866	TUV
15	184	7.24	200	2901	300	4351	6	16	13.23	35.27	TPED	EN ISO7866	TUV
16	203	7.99	166	2408	250	3626	11	20	24.25	44.09	TPED	EN ISO7866	TUV

GB/T 11640 Aluminum Gas Cylinder

NO.	Outside Diameter		Service Pressure		Test Pressure		Water Volume				Certified	Standard	Certification Body
	Outside Diameter		Service Pressure		Test Pressure		Liters		lbs
	mm	in	bar	psi	bar	psi	min	max	min	max
1	60	2.36	150	2176	225	3263	0.2	0.6	0.44	1.32	TS	GB/T 11640	TS
2	60	2.36	300	4351	450	6527	0.2	0.5	0.44	1.10	TS	GB/T 11640	TS
3	81.5	3.21	150	2176	225	3263	0.7	1.5	1.54	3.31	TS	GB/T 11640	TS
4	111.3	4.38	200	2901	300	4351	1.1	4	2.43	8.82	TS	GB/T 11640	TS
5	140	5.51	150	2176	225	3263	3	9	6.61	19.84	TS	GB/T 11640	TS
6	140	5.51	200	2901	300	4351	3	9	6.61	19.84	TS	GB/T 11640	TS
7	184	7.24	200	2901	300	4351	6	15	13.23	33.07	TS	GB/T 11640	TS
8	203	7.99	150	2176	225	3263	8	20	17.64	44.09	TS	GB/T 11640	TS

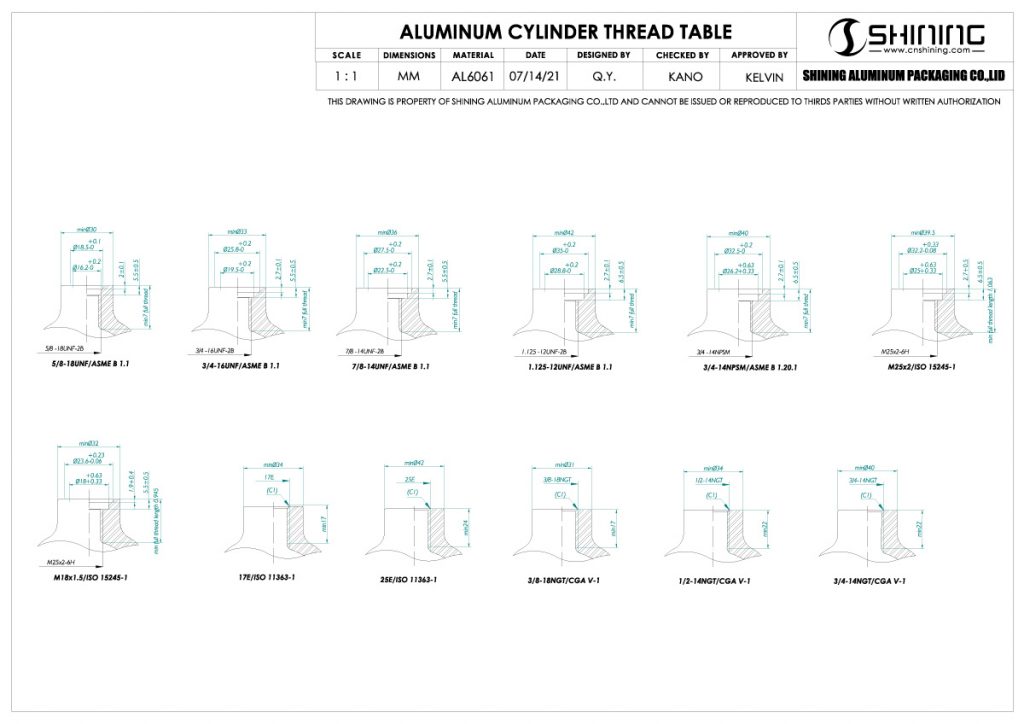

Aluminum CO2 Cylinder Thread Table

5/8-18UNF， 3/4-16UNF，7/8-14UNF， 1.125-12UNF， 3/4-14NPSM， M25x2， M18x1.5， 17E/ISO 11363-1， 25E/ISO 11363-1， 3/8-18NGT/CGA V-1， 1/2-14NGT/CGA V-1， 3/4-14NGT/CGA V-1

Production Process

At Shining Packaging, we deliver top-tier aluminum Fire Extinguishers cylinders with unmatched precision and quality. Our state-of-the-art process includes:

Automatic blanking
Raw material analysis

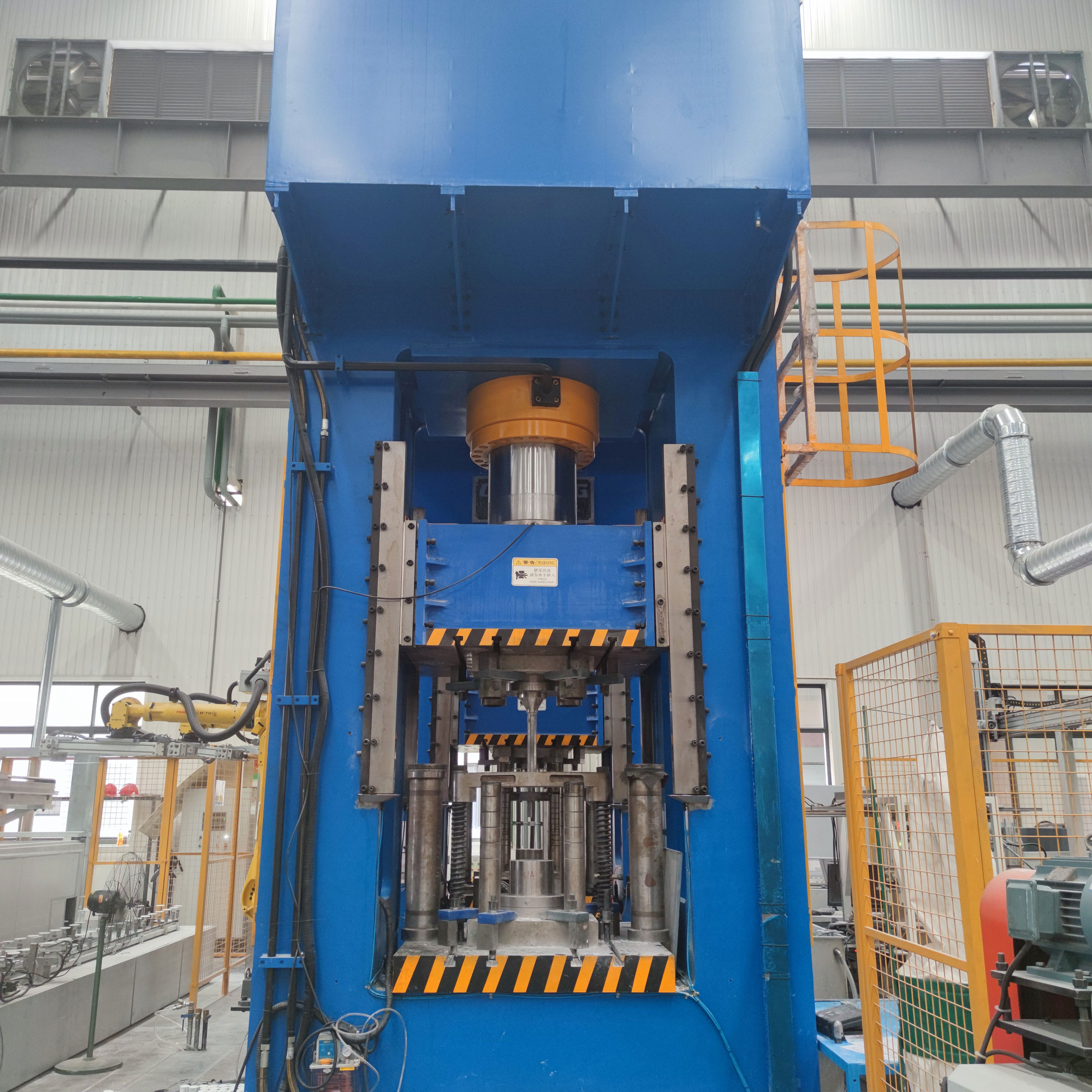

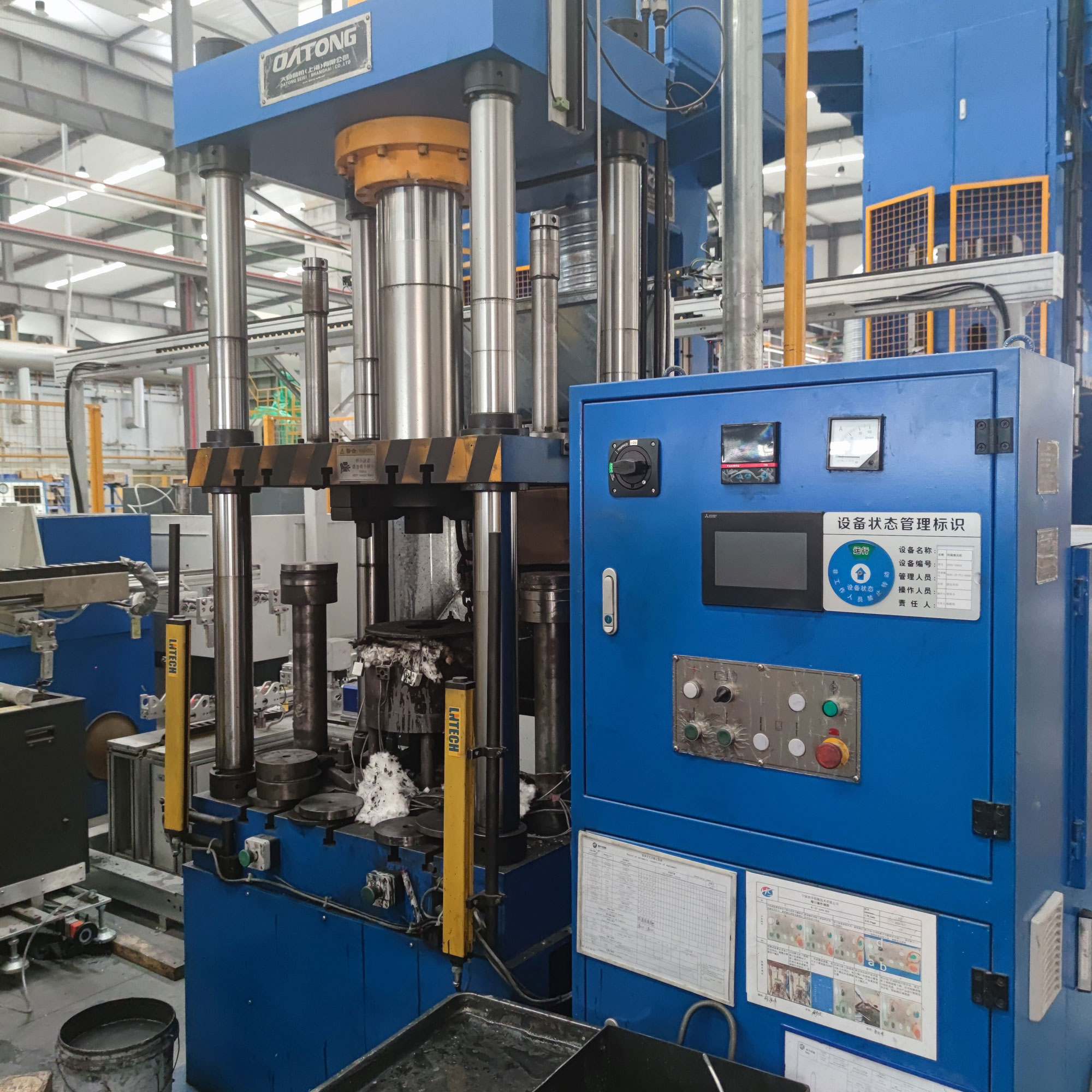

Cold extruding
Closing the top of the cylinder
CNC lathe machining thread
Inside cleaning
Ultrasonic test thickness
Hydraulic pressure test
Mechanical test each batch
Burst test each batch
Laser marking
