PU Foam Aerosol Spray: Low-GWP Propellants, Valves and Aerosol Packaging Reliability

PU foam aerosol spray fails most often at the dispensing path, not in the cured foam. The chemistry matters, but the user usually judges the product through a simpler question: does the can dispense cleanly, stop cleanly, and work again after the first use?

This article focuses on one-component polyurethane foam aerosol, also called 1K PU foam aerosol, one-component PU foam, expanding foam aerosol, foam gap filler, gun-grade PU foam and straw-grade PU foam. The subject sits between adhesive, sealant and insulating material. Treating it as only “foam in a can” misses the main engineering point.

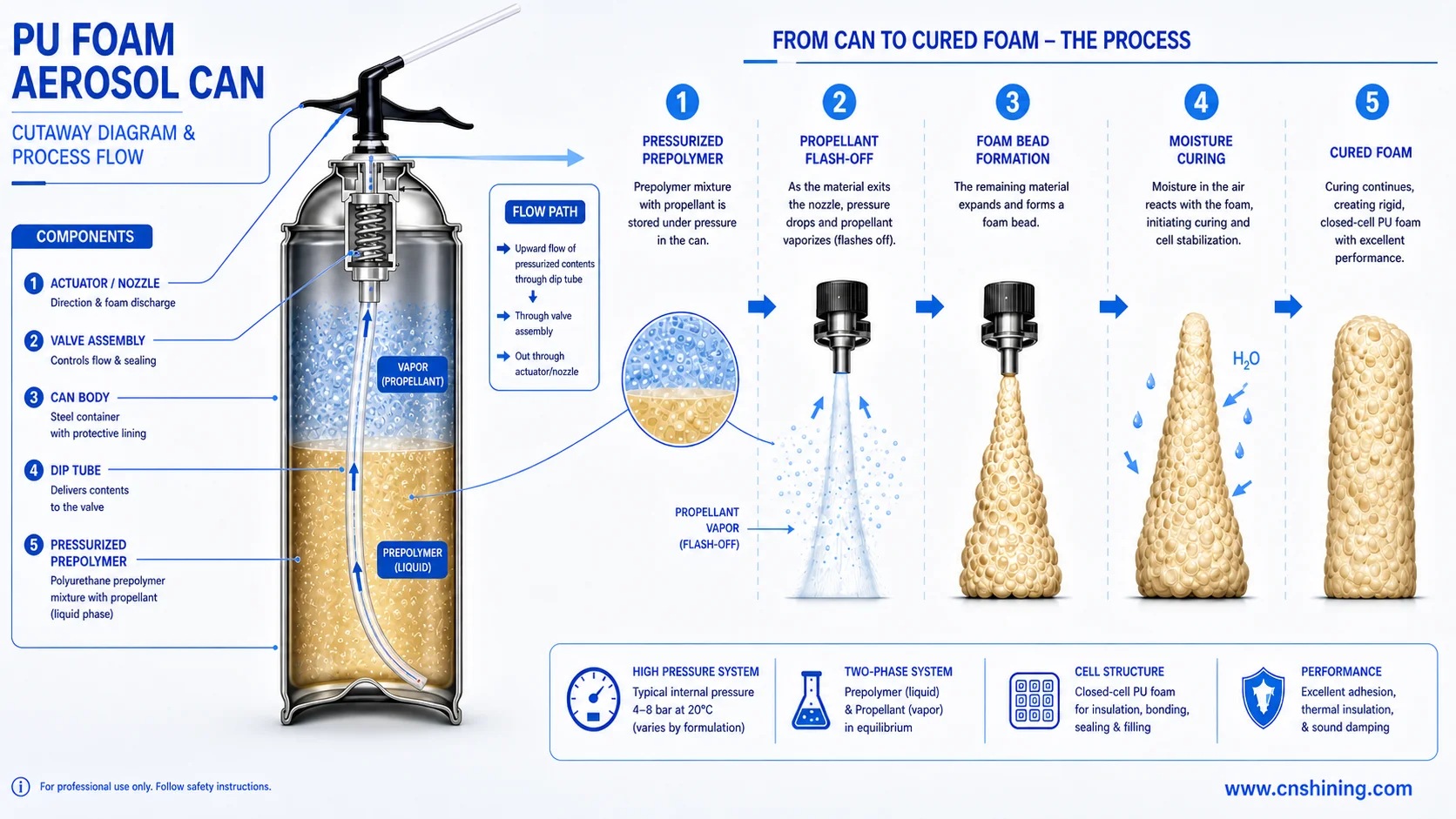

1. Technical Definition and Operating Mechanism

PU foam aerosol spray is a one-component, moisture-curing polyurethane foam system. Inside the pressure-resistant aerosol can are an isocyanate-terminated polyurethane prepolymer, propellant or blowing medium, surfactants, catalysts, flame retardants and other additives. The user does not meter or mix components on site. Pressing the actuator is enough to release and foam the material.

The working process can be read in four steps:

1. The can stores the formulation under pressure. The propellant supplies discharge force and supports initial physical foaming.
2. When the actuator is pressed, the valve stem moves, the gasket seal opens, and internal pressure pushes the liquid through the valve body and actuator channel.
3. As the material exits the can, pressure drops quickly. The propellant flashes off and creates the first foam bead.
4. The foam contacts air moisture. Residual -NCO groups react with water, forming urea and urethane networks while generating some CO₂. The surface skins first; internal curing then becomes moisture-diffusion controlled.

This explains why typical data sheets focus on tack-free time, cut time, post-expansion, dimensional stability and free-rise density. These properties are not only chemical values. They are shaped by formulation viscosity, propellant vapor pressure, actuator geometry, valve compatibility and ambient humidity. A research paper on enhanced one-component spray polyurethane foams also describes OCF as a moisture-cured foam dispensed from pressurized containers used for installing doors and windows, sealing roof gaps and insulating buildings through gap filling and air sealing applications: one-component spray polyurethane foam mechanism.

2. Valve, Actuator and Propellant Interaction

PU foam aerosol is not a standard spray valve filled with thicker content. The basic aerosol valve principle is the same: actuator pressure depresses the stem, opens the sealing interface, and allows pressure to move product outward. The difference is that PU foam can continue expanding and curing inside the flow channel.

For this reason, the commercial value of the package is decided by the system: formulation × valve × actuator × internal can protection × user instructions. The valve gasket must resist the prepolymer, propellant and storage environment. The actuator must control bead size, reduce after-drip and reduce cured residue. The can and internal coating must keep moisture and metal contamination under control.

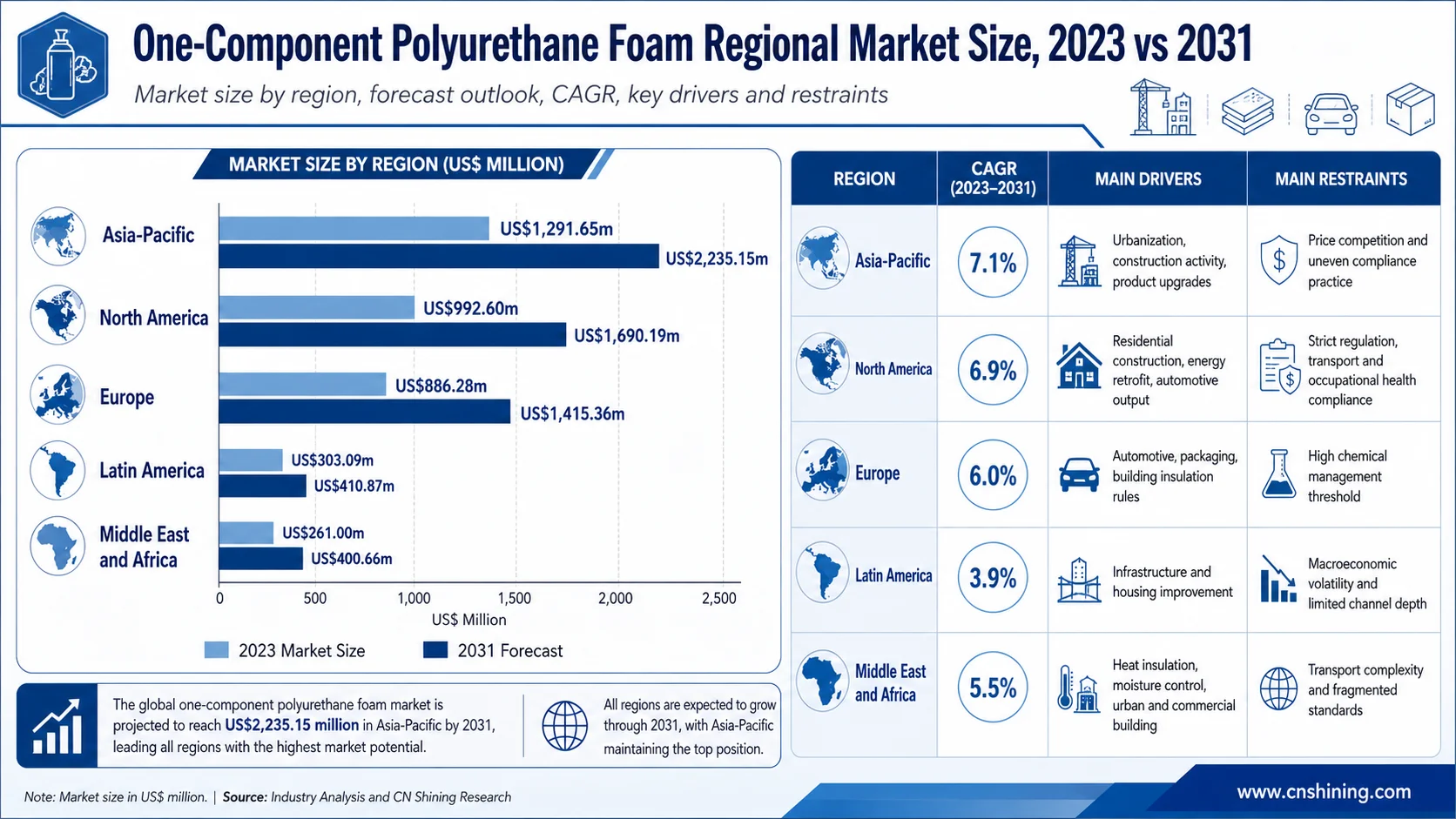

3. Market Size and Regional Pattern

Open summaries place the global one-component polyurethane foam market around US$3.2–3.3 billion in 2024–2025, with longer forecasts moving toward a larger 2030–2033 market. ResearchAndMarkets gives a global market page for this category here: one-component polyurethane foam market data.

At regional level, one public data set uses a consistent 2023 base year and 2031 forecast. Asia-Pacific is the largest region, followed by North America and Europe.

The common growth drivers are clear: building energy efficiency, old-house renovation, air sealing around windows and wall penetrations, lightweight filling, shorter labor time, and low-GWP propellant development. The common restraints are also clear: isocyanate health risk, training rules, aerosol transport limits, raw material price movement, narrow construction windows in low temperature or high humidity, and the familiar half-used-can problem.

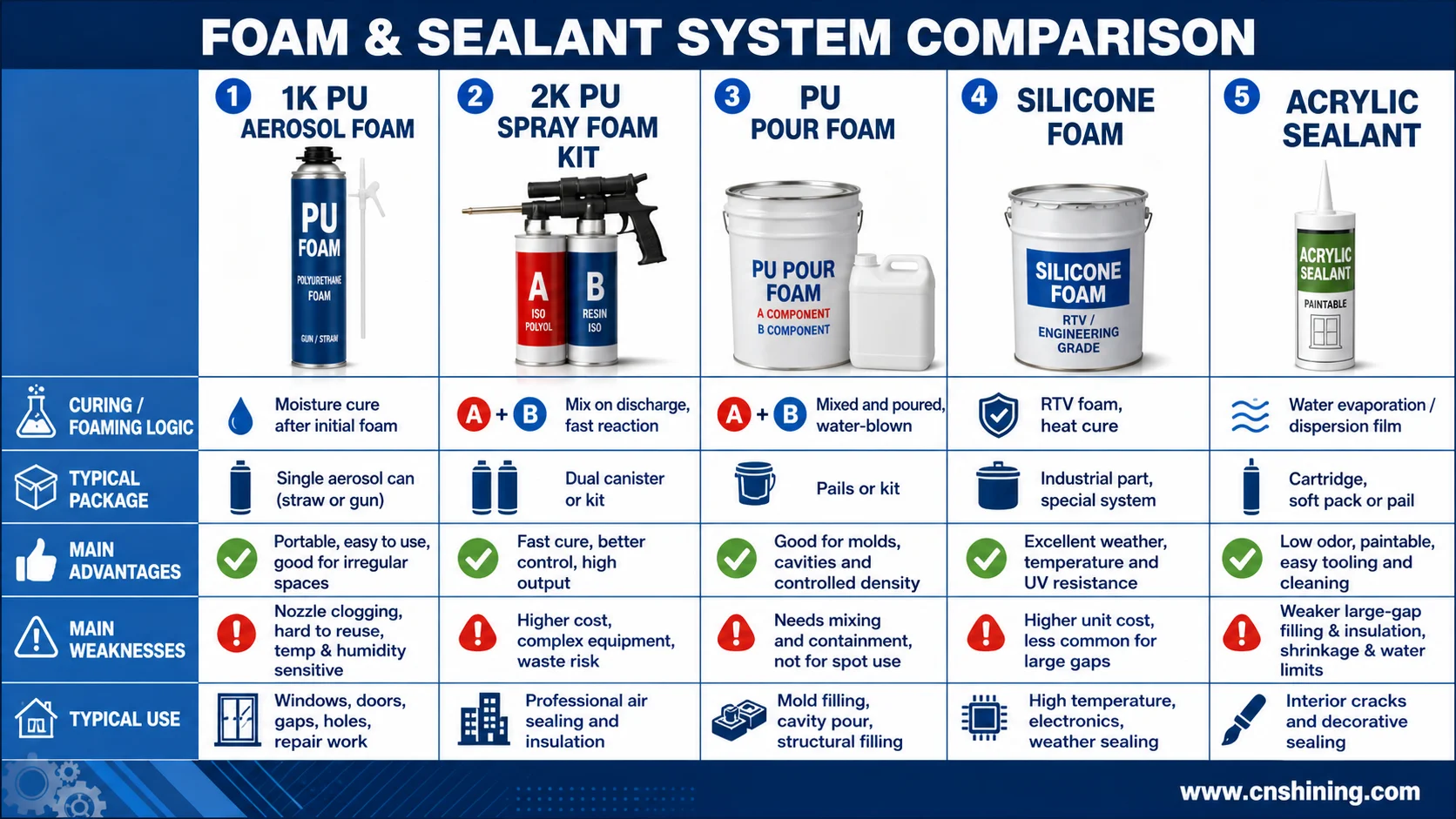

4. Performance Profile and Substitution Logic

The main strength of 1K PU foam aerosol is not absolute peak performance. It is field efficiency. One can handles filling, initial expansion, bonding, and some thermal and acoustic insulation. That is why it fits window installation, crack sealing, renovation repair and DIY work.

The main weakness is also fixed by its mechanism. It depends on moisture curing. It can continue expanding after application. It is hard to reuse if foam cures in the straw or actuator path. The uncured material also carries isocyanate and aerosol transport obligations.

For small workstations, 1K PU aerosol foam is usually the most efficient choice. For faster cure and larger output, 2K kits are stronger. For high-temperature or weathering priority, silicone systems make more sense. For paintability and low odor, acrylic sealants are easier to handle. The right question is not “which material is better?” The right question is “which failure mode matters most at the job site?”

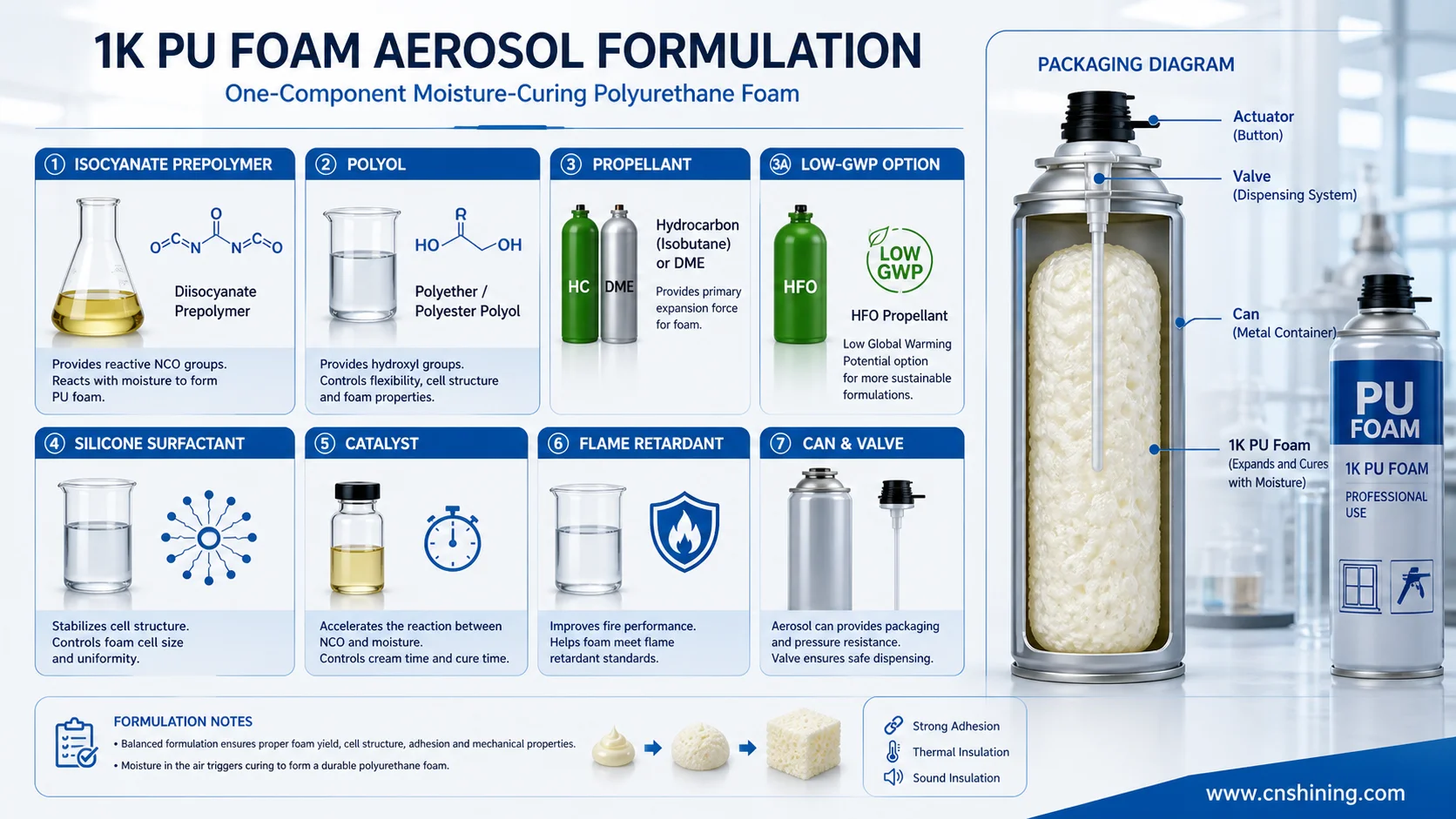

5. Formulation Routes and Terms

Public patents and technical data show that typical 1K PU foam aerosol contains isocyanate or isocyanate-terminated prepolymer, polyether or polyester polyols, blowing agent, silicone surfactant, amine catalyst, flame retardant, plasticizing or rheology modifiers, and sometimes cell-opening agents or emulsifiers.

The difficulty is not the list of ingredients. The difficulty is balance. High viscosity hurts flow and trigger feel. A strong propellant can increase post-expansion. Very low free monomer design can affect shelf stability, rheology and mechanical properties. Packaging compatibility then becomes part of the formulation.

Two patent examples show the direction. EP 2383304 describes a low free monomer one-component foam composition built around specific MDI/PMDI and alcohol chemistry: low free monomer one-component PU foam composition. WO 2011123248 shows that low-GWP inert gas use is not a simple propellant swap; emulsification, cell opening and surfactant design must change together: one-component PU foam with non-liquefied inert propellant.

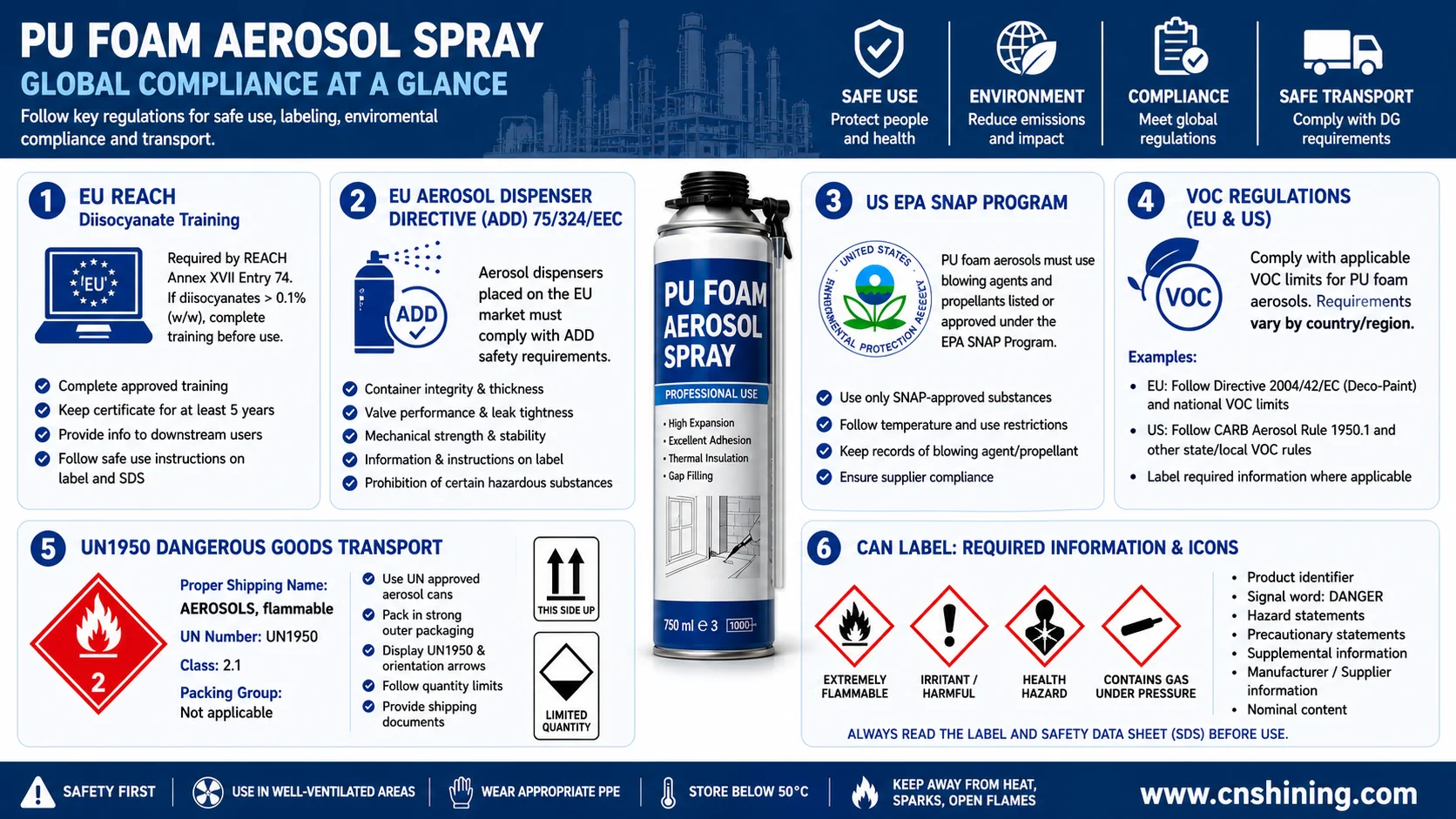

6. Regulatory, Safety and Transport Constraints

Compliance is layered. It is not only about the cured foam. Many restrictions apply to the uncured chemical system, the pressurized aerosol package, shipping mode and user behavior.

The safety message is simple: “safe after cure” does not replace “safe during application.” Uncured MDI-containing foams can present inhalation and skin sensitization concerns. For cross-border e-commerce and sample shipment, the problem is often upstream. The SKU must be designed for the intended transport path before launch.

7. Technology Trends: Low-GWP, Reuse and Recycling

The clearest technology trend is the move toward low-GWP propellant and blowing systems. Honeywell Solstice materials state that its HFO blowing agent technology can be used in one- and two-component PUR foams and can deliver very low GWP relative to older HFC options: HFO foam blowing agents for PUR foams. The technical issue is not only climate claim. The formulation must still hold foam cell uniformity, flow rate, shrinkage resistance and shelf stability.

A second trend is controlled expansion. Low-expansion products reduce the risk of window-frame deformation and overfilling. Soudal’s public low-expansion foam data sheet emphasizes minimal expansion and no shrinkage or post-expansion positioning: low-expansion PU foam data sheet.

A third trend is smarter dispensing. DuPont’s GREAT STUFF Smart Dispenser publicly emphasizes reuse up to 30 days, no dripping and better control: Smart Dispenser reuse and anti-drip concept. That shows where user value has moved. Better expansion yield matters, but a can that works again after interruption often matters more.

A fourth trend is packaging circularity. Aerosol cans are commonly steel or aluminum, both with mature recycling markets. The hard part is not metal recyclability. It is emptying, sorting and clear user instructions. FEA’s recycling page gives the sector-level view: aerosol can recycling context.

8. Top 10 PU Foam Aerosol Spray Brands

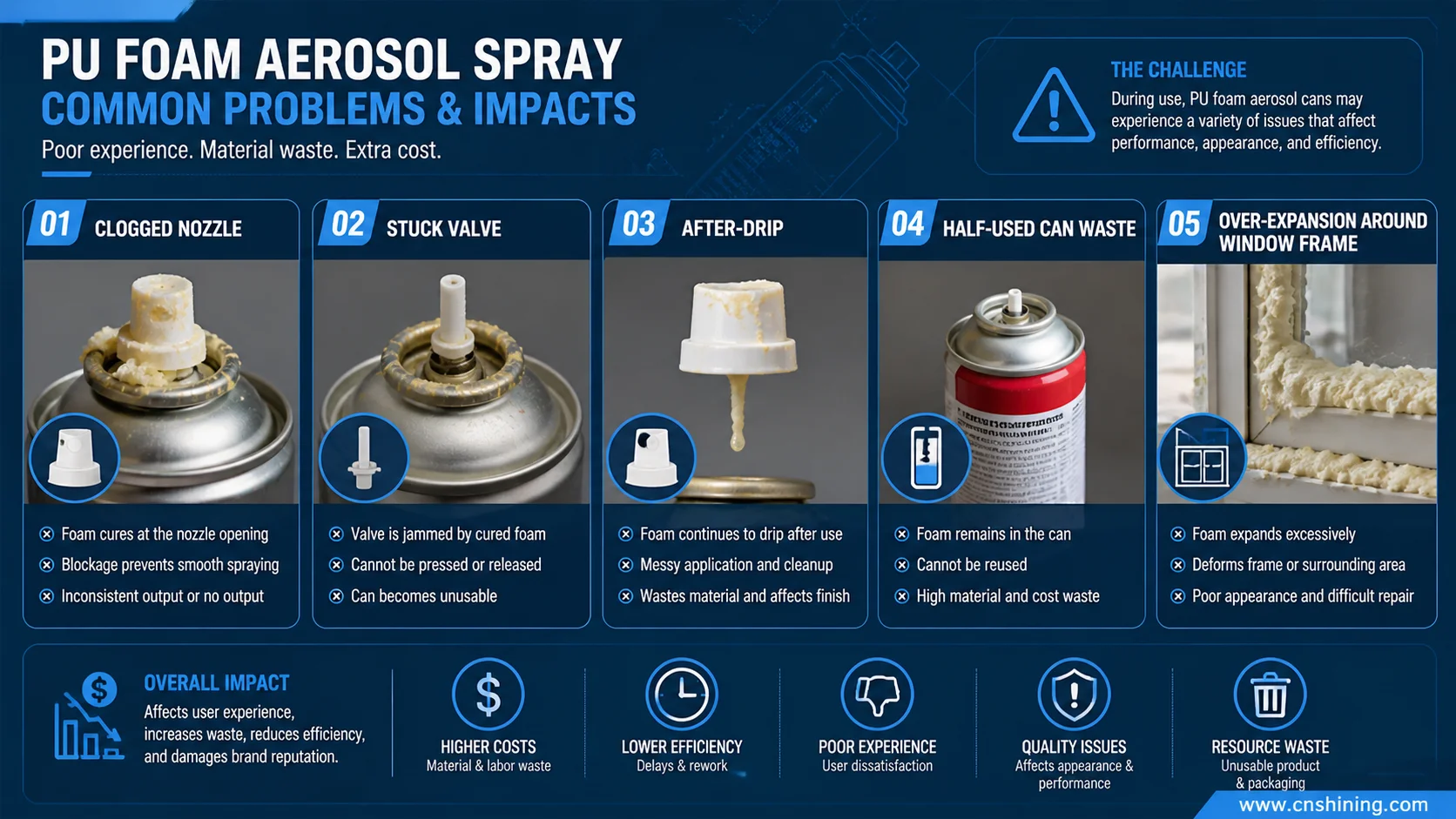

9. User Pain Points and Packaging Engineering Actions

User complaints concentrate on a small number of practical failures: half-used cans becoming waste, clogged nozzles, stuck valves, messy application, uncontrolled post-expansion and poor cleanup. These are not minor user-experience issues. They are packaging engineering issues.

The practical priority is clear. Reduce reuse failure before chasing a small increase in theoretical yield. A customer does not notice another 1–2% foam volume if the nozzle blocks after one small gap. A cleaner second use is a stronger technical claim.

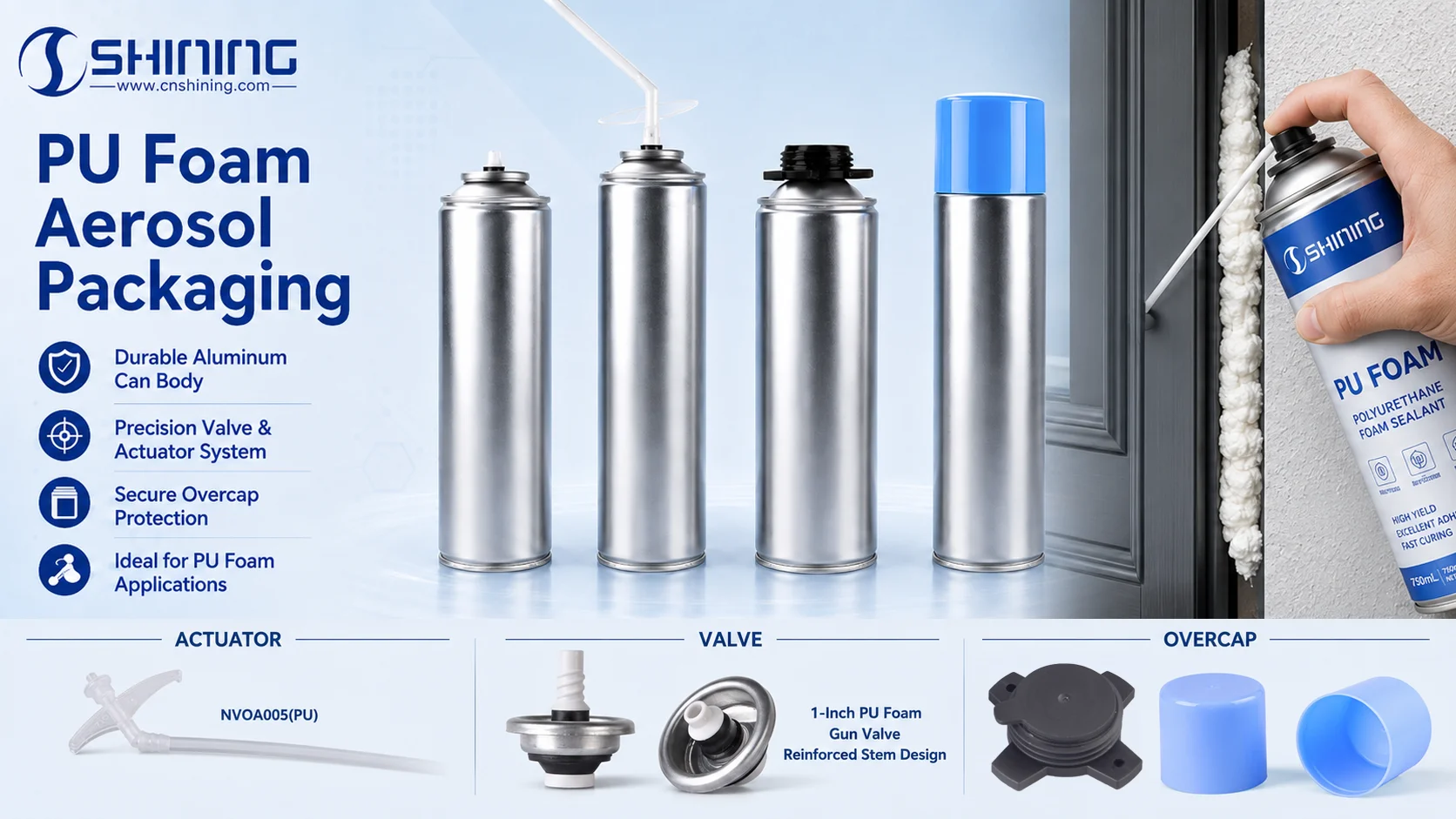

10. Shining Packaging Components for PU Foam Aerosol Spray

For PU foam aerosol spray, the package should be specified as a dispensing system, not as separate parts purchased by price only. The actuator controls bead shape, hand feel, drip behavior and residue volume. The valve controls sealing, opening force, compatibility and shelf-life stability. The can body and inner coating control pressure safety, corrosion resistance and moisture protection.

Shining Packaging’s relevant component scope fits this system view: aerosol actuators, aerosol valves including PU valve options, and aerosol cans for technical products. For a PU foam project, the useful discussion is usually about valve elastomer compatibility, upside-down or gun-grade use, actuator flow path, internal coating, pressure rating, printing space for safety instructions and shelf-life validation with the filled formulation.

This is not a place for shortcuts. A lower-cost valve or actuator can become expensive if it increases returned cans, clogged outlets or half-used-can waste. The correct package decision should be made after filled-can testing, storage-position testing, discharge repeatability testing and post-dispense residue observation.

11. Conclusion

PU foam aerosol spray is a practical product because one can can fill, expand, seal, bond and insulate small to medium gaps. Its main technical risk is also practical: the dispensing system can fail before the chemistry has a chance to show its value.

The strongest development direction is therefore clear: lower reuse failure, improve actuator control, prevent stuck valves, manage post-expansion, and move toward low-GWP propellant systems without sacrificing shelf stability. For packaging developers, the value is no longer only in the resin formula. It is in the complete delivery experience.
